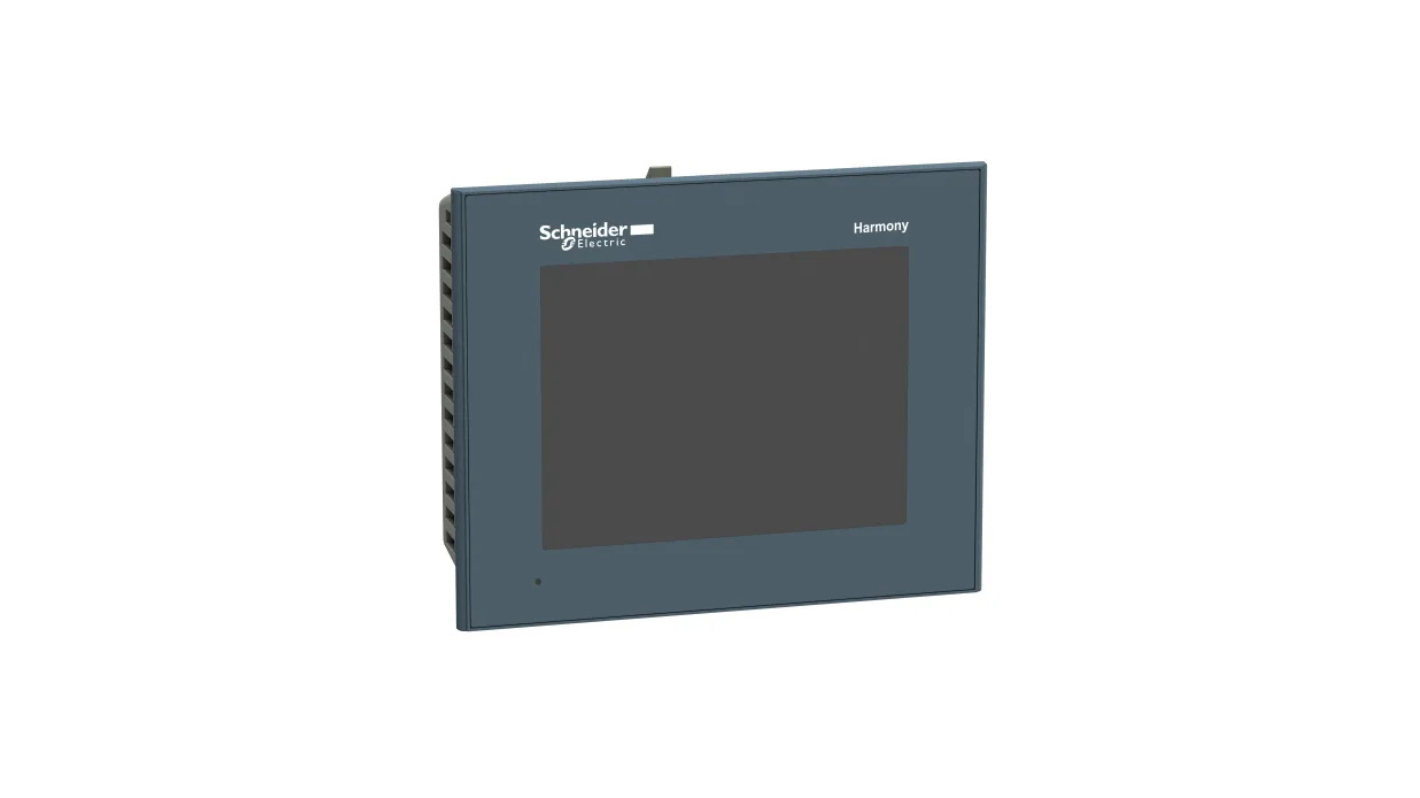

| Référence fabricant (exemple) |
HMIGTO6310 |
| Fabricant |
SCHNEIDER ELECTRIC |
| Gamme |
MAGELIS GTAdvanced — HMIGTO |
| Catégorie |
Interface Homme-Machine (IHM / HMI) |
| Sous-catégorie |
Pupitre opérateur / Panel tactile avancé |
| Type d’affichage |
TFT couleur — 3,5″ à 15″ (selon référence) |
| Résolution (ex. HMIGTO6310 — 10,4″) |
800 × 600 pixels (SVGA) |
| Nombre de couleurs |
65 536 couleurs (16 bits) |
| Rétroéclairage |
LED — durée de vie ≥ 50 000 h |
| Type de commande |
Écran tactile résistif (multi-touch) |
| Touches de fonction |
Aucune (touch only) |
| Interface Ethernet |
1 × RJ45 — 10/100 Mbit/s (2 × RJ45 sur HMIGTO6315 / 7315) |
| Interface série |
1 × RS-232 / RS-485 / RS-422 (Sub-D 9 broches) |
| Ports USB |
2 × USB Type A (Host) |
| Slot SD Card |
1 × SD Card (jusqu’à 32 GB) |
| Slot Compact Flash |
1 × CF Card (sauvegarde projet) |
| Protocoles intégrés |
Modbus TCP, Modbus RTU, EtherNet/IP, Uni-Telway, FIPIO |
| Protocoles optionnels |
PROFIBUS DP, PROFINET IO, DeviceNet (via carte HMIYASSTCPF10 / HMIYASDPF10) |
| Automates compatibles |
Modicon M340, M580, M221, M241, Quantum, Premium, TSX Micro + tierce marque via drivers |
| Mémoire utilisateur |
64 MB (HMIGTO2310) — 128 MB (HMIGTO6310 et supérieur) |
| RAM |
256 MB DDR2 |
| Processeur |
ARM Cortex-A8 — 600 MHz |
| Système d’exploitation |
Linux embarqué |
| Variables (tags) max. |
Illimité (limité par mémoire) |
| Alarmes max. |
Illimité (limité par mémoire) |
| Recettes max. |
Illimité (limité par mémoire) |
| Courbes de tendance |
Oui — temps réel et historique |
| Journalisation (logging) |
Oui — sur SD Card ou clé USB |
| Gestion utilisateurs |
Oui — niveaux d’accès configurables |
| Serveur web intégré |
Oui (accès distant via navigateur) |
| VNC Server |
Oui (accès déporté) |
| FTP |
Oui (transfert fichiers) |
| Logiciel de configuration |
Vijeo Designer 6.2 ou supérieur / EcoStruxure Operator Terminal Expert |
| Alimentation |
24 V DC (19,2 – 28,8 V DC) |
| Consommation (ex. 10,4″) |
≈ 25 W |
| Degré de protection face avant |
IP65 / IP66 |
| Degré de protection face arrière |
IP20 |
| Dimensions face avant (ex. 10,4″) |
315,0 × 248,0 mm |
| Découpe panneau (ex. 10,4″) |
296,0 × 229,0 mm |
| Profondeur de montage |
68,0 mm |
| Poids (ex. 10,4″) |
≈ 2,5 kg |
| Température fonctionnement |
0°C à +50°C |
| Température stockage |
−20°C à +60°C |
| Humidité relative max. |
95 % sans condensation |
| Montage |
Encastré — découpe panneau (horizontal ou vertical) |
| Conformité |
CE, UL, cUL, IEC 61131-2 |
